AISG Control Solution Architecture

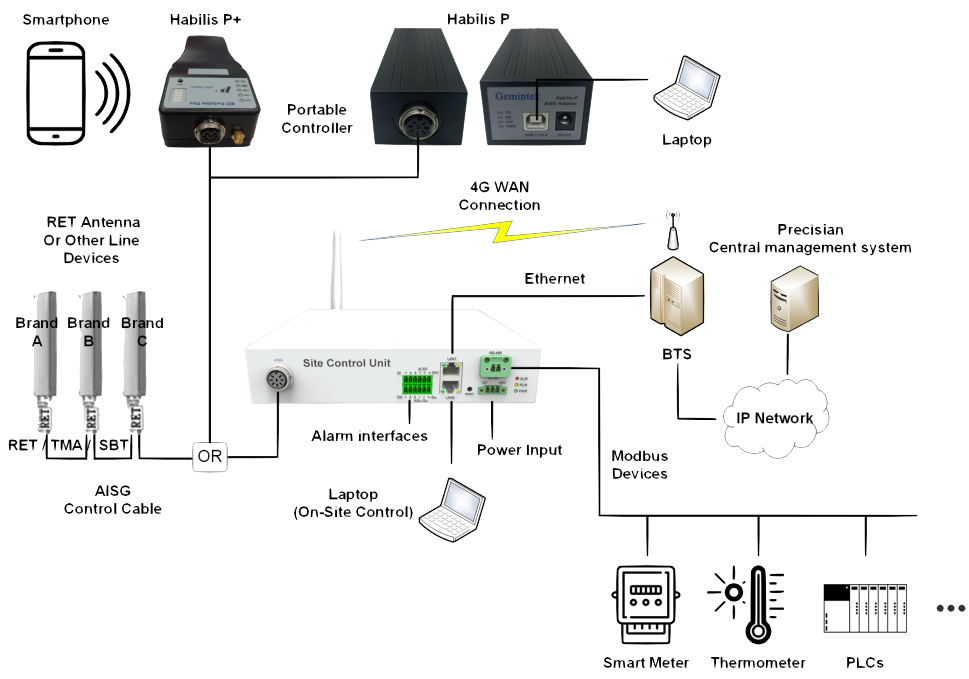

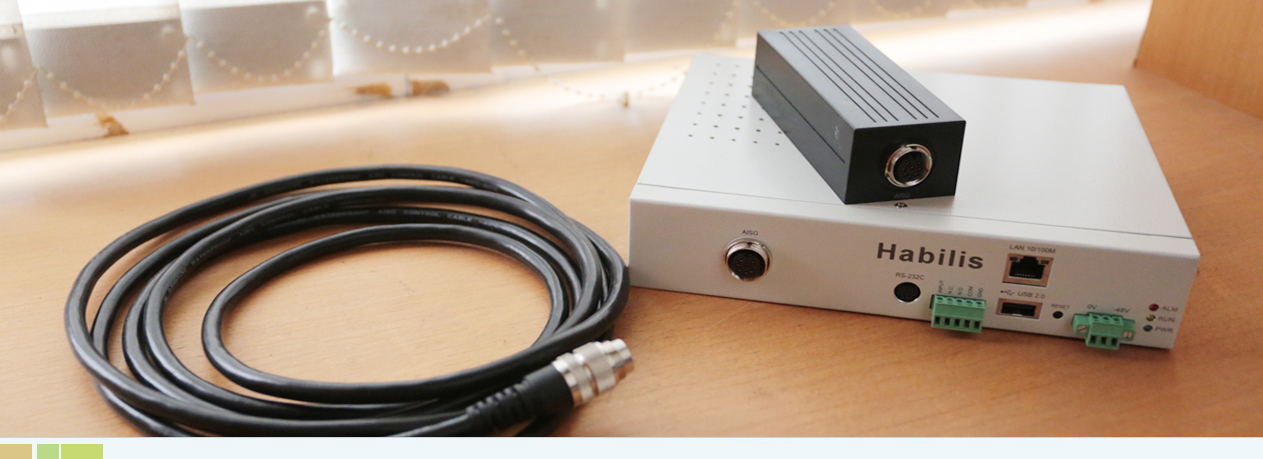

Gemintek’s AISG control solution enables the mobile operator to save time and effort in the RF optimization cycle. The solution consists of Habilis AISG controllers installed at thousands of sites and the Precisian server-based management software installed at a central location. The RF engineer manages the remote site and control RETs and TMAs using the Precisian client software from the office or on the drive test. The portable interface unit is designed as a convenient tool for onsite maintenance and troubleshooting.
AISG Control Solution Architecture
Gemintek’s AISG control solution enables the mobile operator to save time and effort in the RF optimization cycle. The solution consists of Habilis AISG controllers installed at thousands of sites and the Precisian server-based management software installed at a central location. The RF engineer manages the remote site and control RETs and TMAs using the Precisian client software from the office or on the drive test. The portable interface unit is designed as a convenient tool for onsite maintenance and troubleshooting.

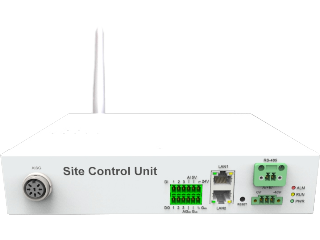

SCU-A2
The SCU-A2 is a new generation unit controller at the site controls all AISG devices such as RET and TMA. It provides DC power and AISG commands to RET or TMA. Through Ethernet or 3G/4G/5G mobile network(optional), it can be connected to OMC central management software or to a laptop PC. Unit provides web interface and command console interface. Software programmable dry contact provides alarm report output to BTS. This unit is for indoor use.
SCU-A2 datasheet
The SCU-A2 is a new generation unit controller at the site controls all AISG devices such as RET and TMA. It provides DC power and AISG commands to RET or TMA. Through Ethernet or 3G/4G/5G mobile network(optional), it can be connected to OMC central management software or to a laptop PC. Unit provides web interface and command console interface. Software programmable dry contact provides alarm report output to BTS. This unit is for indoor use.
|
|
SCU-A2 datasheet
Habilis P

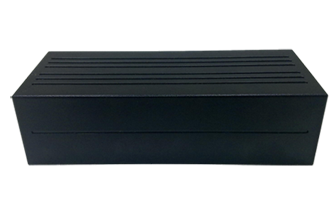

Habilis P is a portable AISG device controller that allows site engineers to quickly access AISG devices such as RET and TMA at the site. The unit connects to a laptop PC through the USB port, and users can easily manage and configure the AISG devices connected to the controller through the AISG port. It is a must-have tool during the mobile network roll-out and optimization.
Habilis P datasheet
Habilis P is a portable AISG device controller that allows site engineers to quickly access AISG devices such as RET and TMA at the site. The unit connects to a laptop PC through the USB port, and users can easily manage and configure the AISG devices connected to the controller through the AISG port. It is a must-have tool during the mobile network roll-out and optimization.
Habilis P datasheet
RET Portable Plus

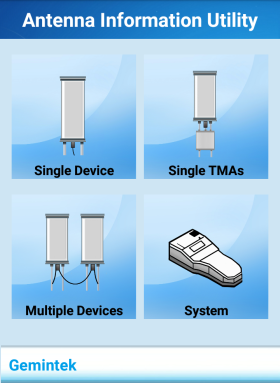

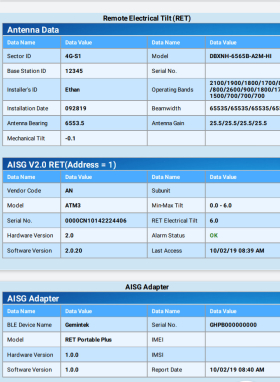

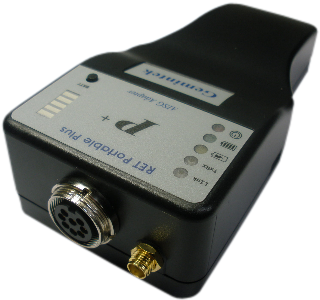

This is new generation of Habilis P, which has built-in battery and friendly controlling interface. Users can easily manage and configure AISG devices by connecting the unit to a smartphone via Bluetooth or to a PC via USB cable and using an AISG cable to connect to the AISG device. The great different thing is you can use the function no matter in Android or iOS system now, which can be wildly compatible with most people’s cell phones, and it’s light pack is easily to carry with wherever you go.
RET Portable Plus datasheet
This is new generation of Habilis P, which has built-in battery and friendly controlling interface. Users can easily manage and configure AISG devices by connecting the unit to a smartphone via Bluetooth or to a PC via USB cable and using an AISG cable to connect to the AISG device. The great different thing is you can use the function no matter in Android or iOS system now, which can be wildly compatible with most people’s cell phones, and it’s light pack is easily to carry with wherever you go.
RET Portable Plus datasheet
Precisian

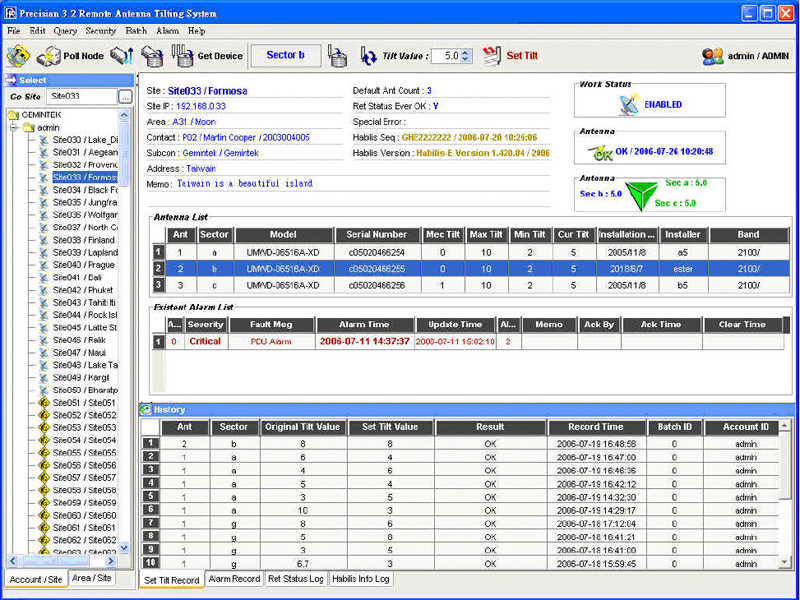

The Precisian software allows the mobile operator to remotely control and manage AISG devices installed at thousands of sites, all from a central location. The Precisian server software manages a dedicated database on a server computer. The server is accessed by using the Precisian client software on the client PC through the mobile operator’s internal network. The main features of the Precisian software include:
Active fault detection and problem diagnosis to maintain high system availability
RET Keep-alive features to extend RET service life
User roles and security
Comprehensive user activity records
Query records and generate reports
Unaccounted RET tilt change warnings
Alarms management
We are able to customize the functions of central management software based on your requirement s in site environmental like reading and monitoring power usage and temperature.
Precisian Brochure
The Precisian software allows the mobile operator to remotely control and manage AISG devices installed at thousands of sites, all from a central location. The Precisian server software manages a dedicated database on a server computer. The server is accessed by using the Precisian client software on the client PC through the mobile operator’s internal network. The main features of the Precisian software include:
We are able to customize the functions of central management software based on your requirement s in site environmental like reading and monitoring power usage and temperature.
Precisian Brochure
AISG Cable
An active member of the AISG, Gemintek has focused on site control solution for over two decades. Our background has helped us understand the field requirements of site engineering. We have launched the patented molding design AISG cable with industry-leading IP68 rating.
Our Strength:
AISG Control Cable Molding Type
The AISG cable designed with molding construction is used to feed data and power from the AISG controller to the RET system components to support different RET system configurations. Molding Type Documen
*Move mouse above the picture could enlarge the picture
AISG Control Cable Molding Type datasheet
AISG Cable Category
It is available in various lengths and configurations to meet different AISG system requirements. The standard cable is terminated with AISG male/female connectors. Customization is available.
AISG Cable Standard: male AISG connector to female AISG connector
AISG Cable Y-Shape: one AISG connector to two AISG connectors
AISG Cable Right Angle: AISG connector with right-angled termination
AISG Cable AISG to DB9: AISG connector to DB9 connector
AISG Colored: AISG connector with color-coded termination
AISG Control Cable Molding Type Patent - Taiwan
AISG Control Cable Molding Type Patent - China
AISG Cable SGS Testing Report
An active member of the AISG, Gemintek has focused on site control solution for over two decades. Our background has helped us understand the field requirements of site engineering. We have launched the patented molding design AISG cable with industry-leading IP68 rating.
Our Strength:
- Higher waterproof rating: IP68
- Tested for corrosion: 168 hours Salt Spray Test and`1 Solar Radiation Test
- AISG cable can be customized to cater to different site requirements.
- AISG connectors fit many different brands of AISG devices.
- After-sales support is available.
AISG Control Cable Molding Type
The AISG cable designed with molding construction is used to feed data and power from the AISG controller to the RET system components to support different RET system configurations. Molding Type Documen
|
|
|
AISG Control Cable Molding Type datasheet
AISG Cable Category
It is available in various lengths and configurations to meet different AISG system requirements. The standard cable is terminated with AISG male/female connectors. Customization is available.
| AISG Y-Shape | AISG Right Angle |
|
|
| AISG to DB9 Connector | AISG Colored |
|
|
AISG Control Cable Molding Type Patent - Taiwan
AISG Control Cable Molding Type Patent - China
AISG Cable SGS Testing Report
